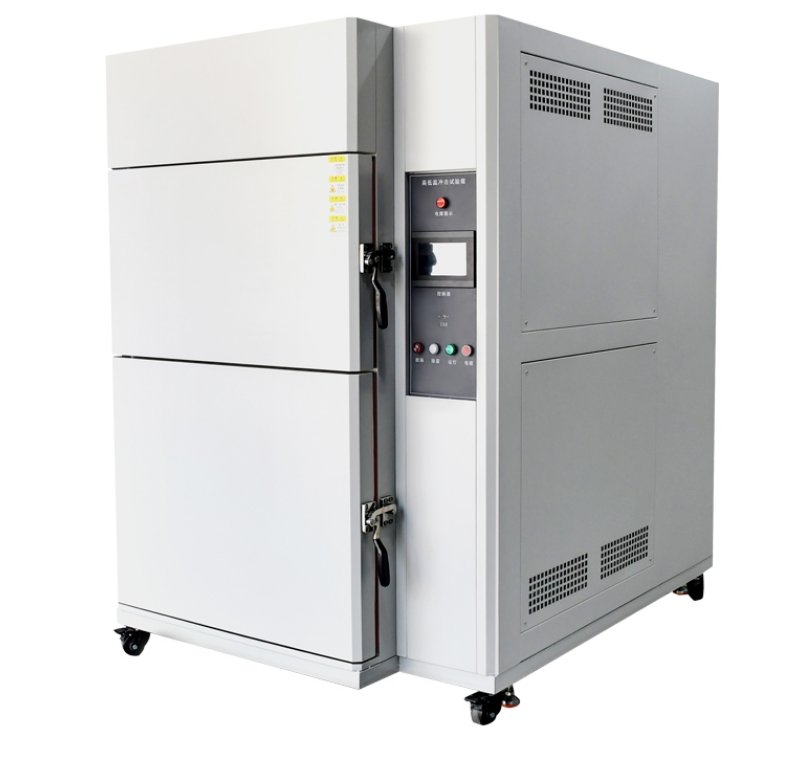

Thermal Shock Test Chamber Rapid Temp Cycling (-70℃~+150℃) For Aerospace/EV/Consumer Electronics

Product Description:

The Thermal Shock Test Chamber is essential testing equipment for
industries dealing with metals, plastics, rubber, electronics, and
composite materials. It evaluates the resistance of materials or
components to rapid temperature changes, simulating extreme high
and low temperatures in quick succession. This helps identify
chemical or physical damage (such as cracking, deformation, or
performance degradation) caused by thermal expansion and
contraction in a short time.
Widely used in electronics, appliances, instrumentation, materials,
and industrial equipment, the Thermal Shock Test Chamber replicates
real-world temperature variations and cycling speeds. By exposing
test samples to rapid thermal shifts, it accelerates aging tests,
assesses durability, and provides data for product optimization,
improvement, and upgrades.

A standard Thermal Shock Chamber consists of:
A: High-temperature zone
B: Low-temperature zone
C: Rapid temperature transition system (achieving ultra-fast changes, e.g., -70°C to +150°C in seconds)

This chamber is ideal for testing material structures and
composites under extreme thermal stress, helping manufacturers
improve product reliability and quality. Common applications
include PCB testing, automotive components, aerospace materials,
and consumer electronics.

Specification:

Test Methed
GB/T2423.1.2,GB/T10592-2008,GJB150.3 High and low temperature thermal shock chamber
Technical parameters
Test tank temperature range	-65℃— +200℃
High temperature tank temperature setting range	+60℃— +220℃
Heating time of high temperature tank	RT(Room temperature)-- ＋150℃≤40min(Room temperature＋10-- ＋30℃)
Heating time of low temperature tank	－80℃-- －10℃
Cooling time of low temperature bath	RT(Room temperature)-- -80℃≤85min(Room temperature＋10-- ＋30℃)
Temperature fluctuation	±1.0℃
Temperature uniformity	±2.0℃
Impact recovery time	－55-- ＋85℃≤ 5min.
Product structure
Inner size	W×H×D :400×400×400(mm)
Outer size	W×H×D :1700×1900×2000(mm)
Inner material	Mirror stainless steel plate(SUS#304)
Outer material	Sand textured stainless steel plate(SUS#304)
Refrigeration system
Compressor	French "Taikang" brand fully enclosed compressor
Condenser	Fin-type attached table-mounted cooling fan
Evaporator	Fin type multi-stage automatic load capacity adjustment
Expansion valve	Danfoss * Components
Refrigerant	The United States imports environmentally friendly refrigerant R404A
Refrigeration accessories	Desiccant (Denmark), oil separator (USA), refrigerant sight glass (Denmark), solenoid valve , filter , pressure controller (South Korea), shutoff valve (Italy), and other refrigeration parts are all imported.
