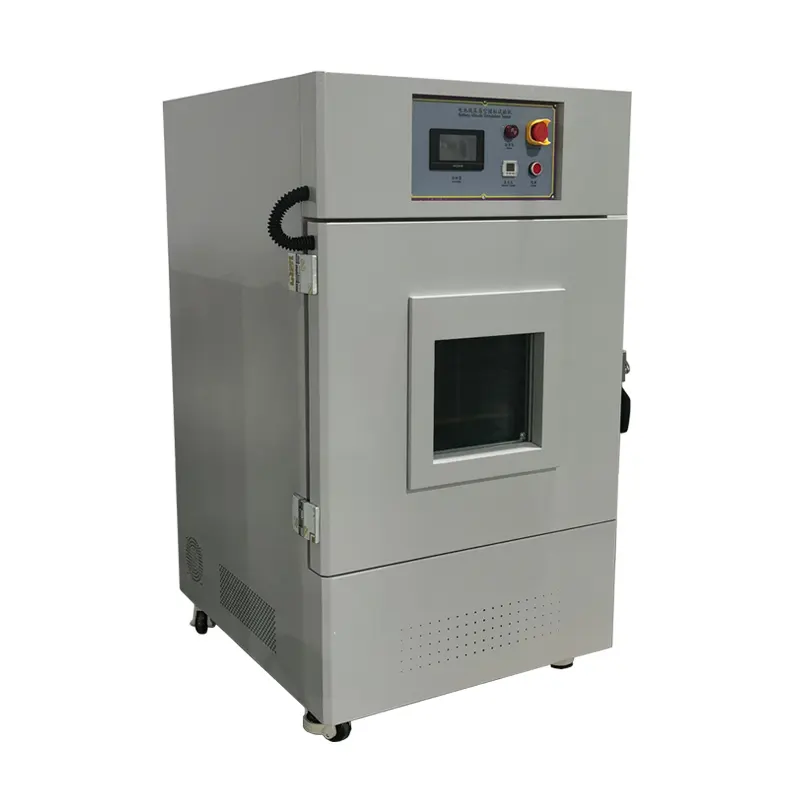

Battery Low-Voltage High-Altitude Simulation Testing Machine
Product Decription:
The Battery Low - Pressure High - Altitude Simulation Test Chamber
is a specialized device designed specifically for conducting high -
altitude low - pressure (simulating high - altitude conditions)
tests on batteries.
During the test, when the battery under test is subjected to a
negative pressure of 11.6 kPa (1.68 psi), it must meet strict
safety requirements. Specifically, the tested battery should not
explode, catch fire, emit smoke, or experience any leakage. This
ensures the safety and reliability of batteries under simulated
high - altitude environments, which are crucial for applications
such as aerospace and certain outdoor - oriented electronic
devices.
The equipment is equipped with advanced control systems. It can
automatically regulate the test duration; for instance, it can be
set to run a test for 6 hours. Throughout the entire test process,
it continuously monitors the air pressure changes inside the
chamber. Once the pre - set test conditions are met or the
specified test time has elapsed, the test chamber is designed to
automatically terminate the test. This automated operation not only
improves testing efficiency but also reduces the potential for
human error, providing consistent and accurate test results for
battery manufacturers and researchers.
Specification:
1. Inner box material | SUS304# first class stainless steel, thickness 6mm, and welded
square pipe reinforcement |
2. Outer box material | Cold rolled steel plate high temperature paint treatment |
3. Pressure range | 0 ~ 101KPa, commonly used test pressure 11.6KPa; |
4. Pressure error | ±2Kpa |
5. Inner box size | W600*D600*H600mm |
6. Outer box size | About W92*D97*H149mm |
7. Storage partition material | SUS304# First class stainless steel round rod |
8. Observation window | Double-layer tempered glass, the size is not less than 300*300*5mm,
the internal glass with explosion-proof film |
9. Control methods | Square anti-projectile net is installed between double glazing |
10. Vacuum degree display | PLC man-machine interface control |
11. Pressure display mode: | SMC digital display vacuum meter |
12. Timing control | For relative display, if the test vacuum degree is 11.6KPa, the
standard air pressure of 101.3KPa-11.6KPa=89.7KPa is used, the
vacuum table is set as -89.7KPa, the displayed value is the pumped
value, and other parameters are calculated and set. |
13. Stress fluctuations | Input Settings on the PLC interface, and set freely within
0-9999H59M59S |
14. Pressure storage time | 5% or less |
15. Safety protection device | 26 hours reduced by 5% |
16. Net weight | Overcurrent protection fuse, built-in pre-overvoltage safety
device, the use of pressure reducing valve to achieve the safety
protection of overpressure, operation error or the end of the
timing will automatically alarm |
17. The device uses power | 150kg |
18. Equipment power | 1 # 220VAC±10%, 50Hz |
Box bottom | Under the bottom of the box is equipped with four universal
pulleys, which can move freely. |
Contains stainless steel price block bearing | 60KG |
