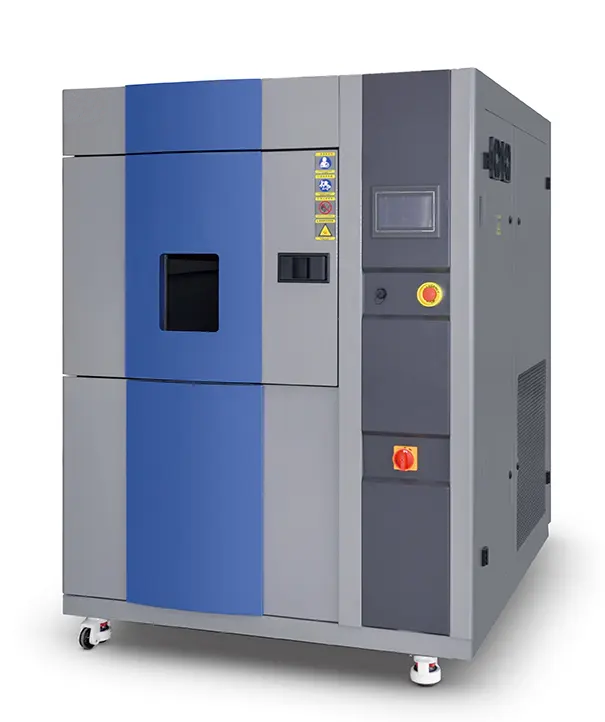

Temperature Cycling Thermal Shock Environmental Test Chamber
Production Description:
The Temperature Cycling Thermal Shock Environmental Test Chamber is
a cutting - edge and state - of - the - art testing apparatus.
Meticulously engineered with precision, it is specifically designed
to subject products and materials to an extensive gamut of highly
challenging environmental conditions. This advanced chamber,
equipped with the latest technology and innovative features, is
tailor - made to meet the most exacting and stringent testing needs
across a wide spectrum of diverse industries. By simulating extreme
temperature variations, rapid thermal shocks, and other
environmental stressors, it provides invaluable and in - depth
insights into product performance and durability. These insights
are crucial for product developers, quality control teams, and
researchers, enabling them to make informed decisions, enhance
product design, and ensure that products can withstand real - world
environmental challenges.
Specification:
Structure and material | 1. Inner box material: stainless steel plate (SUS#304)
Carton material: stainless steel plate or cold-rolled plate baking
paint (optional)
2. Insulation material: High temperature tank: aluminum silicate
insulation cotton
Low temperature tank: high-density PU foaming
1. Heater: fin-type heat dissipation tubular stainless steel
electric heater.
a: High temperature tank 6.5 KW.
b: Cryogenic tank 5.5 KW.
2. Air supply circulation system: a. Motor 1HP×2 sets
b. Stainless steel elongated shaft
c. Multi-wing fan blades (SIROCCO FAN)
e. Specially designed fan forced air supply circulation system
3. Chamber door: test chamber monolithic door, left open.
a. Recessed flat handle.
b. Rear button: SUS#304.
c. Silicone styrofoam strip. |
Working principle | Using low temperature and high temperature cold storage and hot
tanks, according to the needs of the action, use the cylinder
valve to switch the hot and cold air, so as to achieve a rapid
temperature shock effect, balance the temperature control system
(BTC) + specially designed air supply circulation system, and
control the SSR in P.I.D. mode, so that the heating capacity of the
system is equal to the heat loss, so it can be used stably for a
long time. |
Company Information:
Dongguan Neide Technology Co. Ltd located in Dongguan, Guangdong
province with convenient transportation access. We take immense
pride in our journey of excellence as a premier provider of
top-quality testing equipment. With our unwavering commitment to
innovation, we specialize in crafting cutting-edge environmental
test chambers and mechanical test machines.
Our extensive range includes temperature and humidity chambers,
thermal shock test chambers, tensile testing machines, and
vibration test machines. What sets us apart is our proficiency in
creating customized testing equipment tailored to your specific
needs.
At the heart of our operations lies a dedication to precision and
compliance. Our products are engineered to meet and exceed
international standards, such as ISO, ASTM, DIN, EN, GB, BS, JIS,
AMSI, UL, TAPPI, AATCC, and IEC.
This ensures that our solutions not only adhere to industry
benchmarks but set new standards of excellence. Our services and
products find applications across diverse sectors, including
R&D institutions, quality inspection establishments,
universities, and electronics and communications industries
1. Will there be any danger if the chamber door is accidentally
opened during the test?
Answer: The chamber door is equipped with a safety lock and a sensor
device. Once the opening action of the chamber door is detected
during operation, the test process will be immediately suspended,
and the temperature change operation will be stopped to prevent the
ejection of high or low-temperature gas, which may cause accidents
such as scalds or frostbites.
2. What are the warranty periods for the whole machine and key
components respectively?
Answer: The whole machine has a one-year warranty, and key components
such as compressors and temperature sensors have a two-year
warranty. During the warranty period, any repairs and replacement
of parts due to product quality problems will not cost you extra.
