Air Circulation Aging Climate Test Chamber 80L 150L 225L 408L 500L 800L 1000L

Ask Lasest Price
Brand Name :	Neide
Model Number :	ND-800
Certification :	CE
Price :	Negotiable
Payment Terms :	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :	100sets/month
Delivery Time :	7-22 work days

Add to Cart

Product Details
Company Profile

Air Circulation Aging Climate Test Chamber 80L 150L 225L 408L 500L 800L 1000L

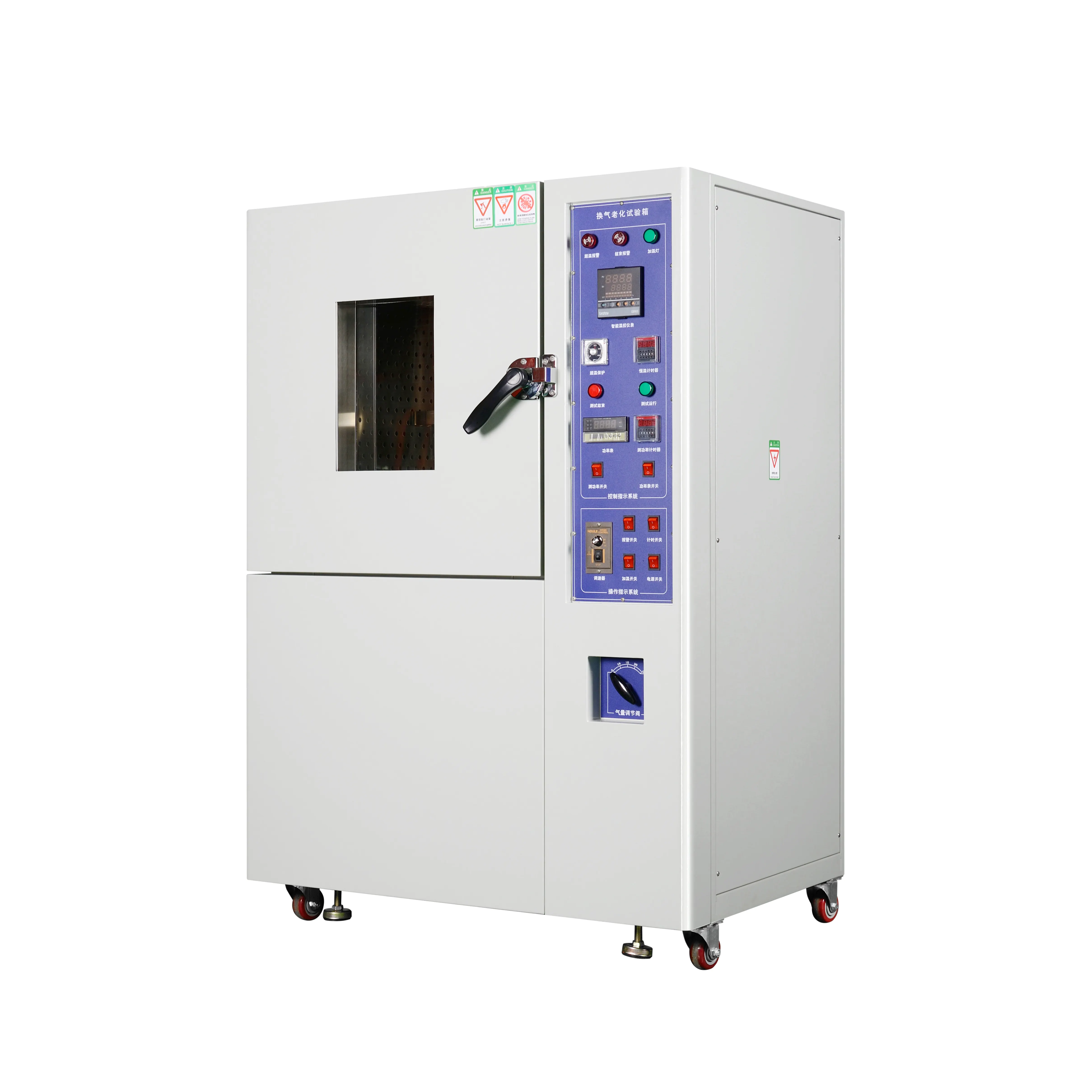

Air Circulation Aging Climate Test Chamber

Product Description:

The air Circulation Aging Climate Test Chamber is meticulously engineered to perform comprehensive heat - resistance assessments. It functions as an indispensable instrument for appraising electrical insulation materials, electronic components, plasticized items, and other materials. By subjecting these materials to high - temperature environmental conditions, it accurately gauges their adaptability for storage and utilization, thereby providing crucial insights into their performance under extreme heat.

Specification:
  	 			Capacity(L)
 			80, 150, 225, 408, 500, 800, 1000L(optional, or custom-made)

Performance
 			Control Methods
 			Balanced temperature humidity control system
(BTHC) PID intelligent adjust

 			Temperature and Humidity Range
 			-70°C~150°C; 20%-98%R.H

 			Accuracy
 			±1.0°C, ±2%RH / ±0.5°C, ±2%RH

 			Resolution
 			±0.1°C, ±0.1%RH / ±1°C, ±3%RH

 			Heating Rate
 			≤3°C/min

 			Cooling Rate
 			Average 1°C/min

 			Internal Material
 			SUS#304 stainless steel

 			External Material
 			SUS#304 stainless steel or Antirust processing cold-rolled steel sheet(Spray)

 			Insulation Material
 			Superfine wool + polyurethane foam

Regulator
 			Cooling Mode
 			Mechanical binary refrigeration way

 			Compressor
 			Closed compressor
(French Tecumseh or German Copeland )

 			Refrigerant
 			R23/R404A

 			Condensing Way
 			Air-cooling and Water-cooling

 			Humidifier
 			Stainless steel humidifying tube

 			Airflow Way
 			Broadband-type forced air circulation

Controller
 			Operate Interfaces
 			Korea TEMI 880 LCD touch screen

 			Memory capacity
 			120 groups, each program 100 segment

 			Input
 			PT100 or T thermocouple

 			Communicate Interface
 			RS-232

Subsidiary function
 			Upper and lower alarm; self diagnosis ;
alarm display(fault cause); time sequence protection
(Automatic turn on or turn off )

Water supply
 			Water supply
 			Circulating water supply

 			Water tank
 			Built-in hand type(30Kg capacity)

 			Water quality
 			resistance >500Ω.m

Standard Configuration
 			One observe window(Double hollow toughened glass); one test pattern D50mm(on the left); 2 layers sample frame;
onefloodlight(fluorescent lamp);one water feeding tank;

Safety device
 			Power leakage protection; Dry heating protection;
Water protection Over-temperature protection switch; Temperature deviation
alarm, Compressor Overpressure; overload; Water shortage; Phrase shortage, etc.

 			Power supply
 			220VAC ±10%50/60Hz & 380VAC ±10%50/60Hz

Air Circulation Aging Climate Test Chamber 80L 150L 225L 408L 500L 800L 1000L

Company Information:

Dongguan Neide Technology Co. Ltd located in Dongguan, Guangdong province with convenient transportation access. We take immense pride in our journey of excellence as a premier provider of top-quality testing equipment. With our unwavering commitment to innovation, we specialize in crafting cutting-edge environmental test chambers and mechanical test machines.

Our extensive range includes temperature and humidity chambers, thermal shock test chambers, tensile testing machines, and vibration test machines. What sets us apart is our proficiency in creating customized testing equipment tailored to your specific needs.

At the heart of our operations lies a dedication to precision and compliance. Our products are engineered to meet and exceed international standards, such as ISO, ASTM, DIN, EN, GB, BS, JIS, AMSI, UL, TAPPI, AATCC, and IEC.

This ensures that our solutions not only adhere to industry benchmarks but set new standards of excellence. Our services and products find applications across diverse sectors, including R&D institutions, quality inspection establishments, universities, and electronics and communications industries.
