Safety Shoes Footwear Drop Impact Testing Machine With BS ANSI Standard

Ask Lasest Price
Brand Name :	Neide
Model Number :	ND-355
Certification :	CE
Price :	Negotiable
Payment Terms :	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :	100sets/month
Delivery Time :	7-22 work days

Add to Cart

Product Details
Company Profile

Safety Shoes Footwear Drop Impact Testing Machine With BS ANSI Standard

Safety Shoes Drop Impact Testing Machine With BS/ANSI Standard

Product Description:

The Safety Shoes Footwear Impact Resistance Tester is a specialized
and critical piece of equipment within the realm of personal
protective equipment (PPE) assessment. It is engineered to
accurately evaluate the impact - resistance capabilities of safety
shoes, a crucial aspect of ensuring worker safety in various
industrial environments.

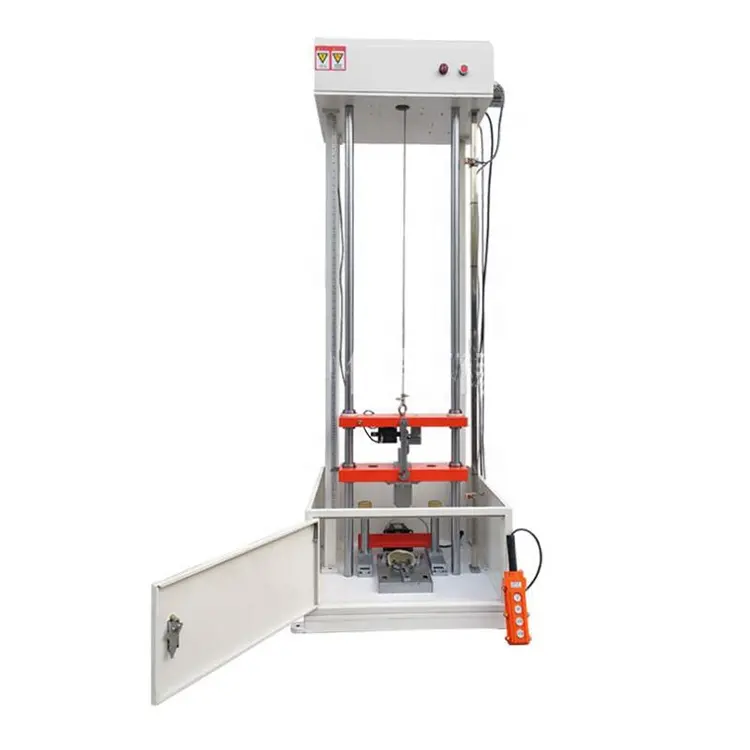

This tester is equipped with a steel striker mechanism. The steel
striker is designed to freely fall along vertical guides from a
precisely predetermined height. As it descends, it accumulates
kinetic energy, which is then transferred to the toe area of the
safety footwear. This impact energy is calibrated to simulate real
- world scenarios where heavy objects might strike the toes of
workers. By measuring the degree of dent formed on the toe of the
safety shoe after the impact, valuable insights can be obtained
regarding the shoe's ability to absorb and distribute impact
forces. Additionally, an important criterion is that during this
impact test, the toecap of the safety shoe should not develop any
cracks along the test axis, nor should the impact cause the
material to be penetrated. This ensures that the integrity of the
safety shoe's protective structure remains intact under impact.

Specification:

Item	ND-355 Safety Shoes Drop Impact Testing Machine
Impact Weight	(EN) 20±0.2kg, (BS, ANSI) 22.7KG
Drop Height	0~1100mm auto adjustable
Impact Energy	(EN)200J, (BS, ANSI)100J
Striker	(EN)3±0.1mm, (ANSI) ø25.4
Dimension	70×70×180cm
Weight	185kg
Power	AC220V/50Hz or specified

Company Information:

Dongguan Neide Technology Co. Ltd located in Dongguan, Guangdong province with convenient transportation access. We take immense pride in our journey of excellence as a premier provider of top-quality testing equipment. With our unwavering commitment to innovation, we specialize in crafting cutting-edge environmental test chambers and mechanical test machines.

Our extensive range includes temperature and humidity chambers, thermal shock test chambers, tensile testing machines, and vibration test machines. What sets us apart is our proficiency in creating customized testing equipment tailored to your specific needs.

At the heart of our operations lies a dedication to precision and compliance. Our products are engineered to meet and exceed international standards, such as ISO, ASTM, DIN, EN, GB, BS, JIS, AMSI, UL, TAPPI, AATCC, and IEC.

This ensures that our solutions not only adhere to industry benchmarks but set new standards of excellence. Our services and products find applications across diverse sectors, including R&D institutions, quality inspection establishments, universities, and electronics and communications industries.
