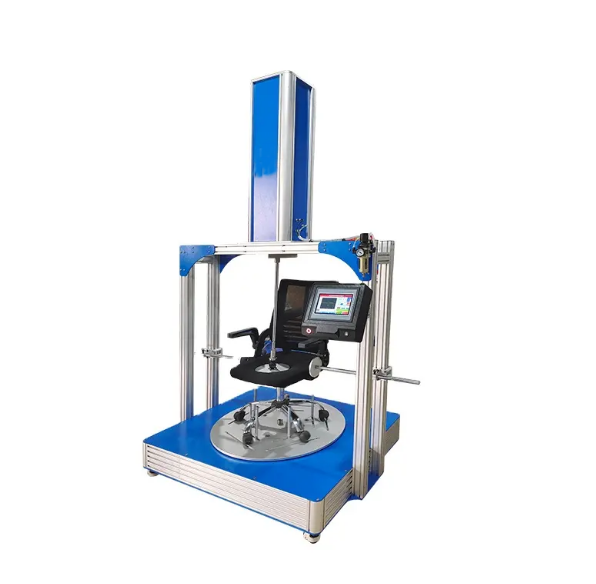

Furniture Testing Instrument Office Chair Rotation Fatigue Life
Tester
Product Description:
The Universal Swivel Chair Test System is specifically engineered
to conduct comprehensive tests on chairs with rotating seats.
Driven by a high-performance motor, the system precisely simulates
the rotational movement of the chair's platform. It incorporates a
frequency converter to manage variable speeds and acceleration,
enabling a wide range of motion testing scenarios.
The system is equipped with a precision pressure regulation
mechanism that ensures consistent and reliable force output from
the cylinder. A universal joint at the cylinder's output end allows
for adaptability to the varying angles of chair surfaces, enhancing
the accuracy and reliability of the test results.
The clamping mechanism is designed for simplicity and efficiency,
featuring an automatic alignment function that eliminates the need
for vertical force on the chair's legs. This design mimics natural
usage conditions, providing more realistic test results.
Additionally, the output force height of the cylinder is
adjustable, accommodating chairs of different heights and ensuring
a versatile testing solution suitable for a variety of chair
designs.
This advanced testing system is ideal for evaluating the
durability, stability, and overall performance of swivel chairs,
making it an essential tool for furniture manufacturers and quality
control laboratories.


Major Specification:
Capacity | 2KN Load Cell |
Test Force Value | 0.2~1.8KN (allowable error ±5%) |
BIFMAX5.1-2017: Seat Load 1.24kN, QB/T: Seat Lbad 1.02kN |
BIFMAX5.1-2017: Seat Load 1.13kN, EN 1335-2: Sat Load 950N |
Test Speed | 10±5 r/min, BIFMA: 5-15 r/min, QB/T: 5-15 r/min |
Test Mode | One side 60,000 cycles;Alternating clockwise and counterclockwise: 60,000 cycles (120000
cycles in total) |
Test Angle | 0~360°(Can be adjusted) |
Dimension | 1400mmX1100mmX2150mm (L*W*H) |
Effective test Height | 300mm~850mm |
Sample Size | Base diameter ≤750 mm |
Company Information:
Dongguan Neide Technology Co. Ltd located in Dongguan, Guangdong
province with convenient transportation access. We take immense
pride in our journey of excellence as a premier provider of
top-quality testing equipment. With our unwavering commitment to
innovation, we specialize in crafting cutting-edge environmental
test chambers and mechanical test machines.
Our extensive range includes temperature and humidity chambers,
thermal shock test chambers, tensile testing machines, and
vibration test machines. What sets us apart is our proficiency in
creating customized testing equipment tailored to your specific
needs.
At the heart of our operations lies a dedication to precision and
compliance. Our products are engineered to meet and exceed
international standards, such as ISO, ASTM, DIN, EN, GB, BS, JIS,
AMSI, UL, TAPPI, AATCC, and IEC.
This ensures that our solutions not only adhere to industry
benchmarks but set new standards of excellence. Our services and
products find applications across diverse sectors, including
R&D institutions, quality inspection establishments,
universities, and electronics and communications industries.
FAQ:
1.How does the tester simulate real-world usage conditions?
The tester uses a motor-driven system to simulate the rotational
movement of the chair's platform. It incorporates a frequency
converter to manage variable speeds and acceleration, allowing for
a wide range of motion testing scenarios. Additionally, the
clamping mechanism is designed to mimic natural usage conditions by
eliminating the need for vertical force on the chair's legs and
providing an adjustable output force height to accommodate
different chair heights.
2. What types of office chairs can be tested with this instrument?
This tester is versatile and can accommodate a wide range of office
chairs, including those with different seat heights, sizes, and
designs. The adjustable clamping mechanism and universal joint at
the cylinder's output end ensure adaptability to various chair
surfaces and angles, making it suitable for both standard and
ergonomic office chairs.
3. What kind of after-sales support is provided?
We offer comprehensive after-sales support, including technical
assistance, spare parts supply, and software updates. Our customer
service team is available to address any issues or questions you
may have. We also provide on-site service and training to ensure
you get the most out of your tester.
