Constant Temperature & Humidity Test Chamber Laboratory
Multipurpose Solution For Material Analysis and Durability Testing
Product Description:

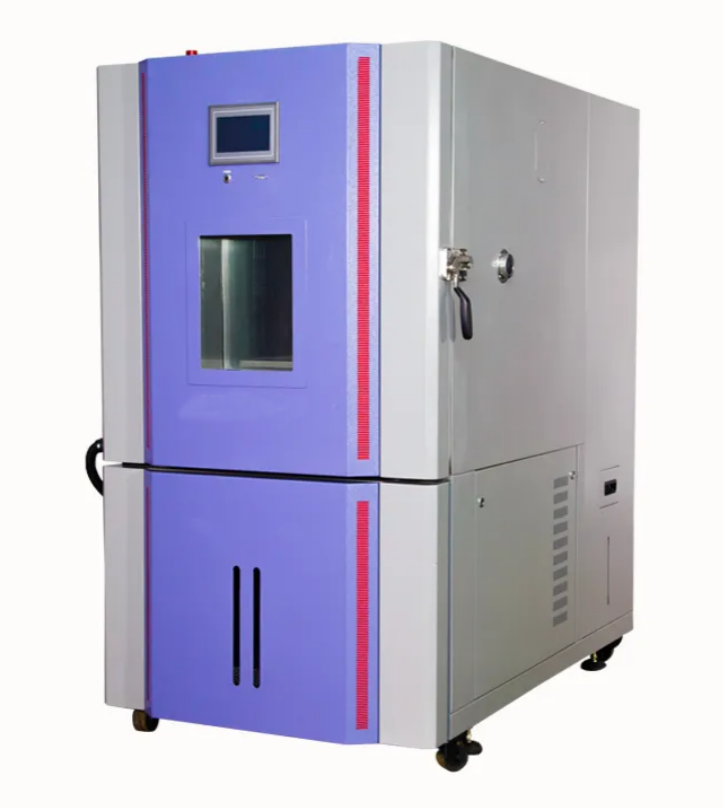

The Innovative Design Constant Temperature & Humidity Test Chamber
is a state-of-the-art environmental simulation solution designed
for comprehensive testing in various industries. This chamber
offers precise control over temperature and humidity, making it
ideal for evaluating the performance and reliability of materials,
components, and products under diverse environmental conditions.
Major Specification:
| Model | ND-408A | ND-408B | ND-408C | ND-408D |
| Temperature range | -20℃~+150℃ | -40℃~+150℃ | -60℃~+150℃ | -70℃~+150℃ |
| Temperature fluctuation | ≤± 0.5 ℃ (at constant temperature) |
| Temperature uniformity | ≤±2.0℃ |
| Temperature deviation | ≤±2.0℃ |
| Excessive temperature rise and fall | ≤±2.0℃ |
| Heating rate | Average 3 ℃/min, non-linear throughout the entire process |
| cooling rate | Average 1℃/min, non-linear throughout the entire process |
| Humidity range | 20%RH~98%RH |
| Humidity fluctuation | ±2.0%RH |
| Humidity uniformity | ±3.0%RH |
| Humidity deviation | ± 3.0% RH (humidity>75% RH), ± 5.0% RH (humidity ≤ 75% RH) |
| Equipment noise | ≤ 70dB (A-level, constant, 1 meter in front of the equipment) |
| Nominal internal volume (L) | 480L |
| Inner box size (w*d*h) mm | W800mm×D600mm×H850mm |
| Outer box size (w*d*h) mm | W1050mm×D1600mm×H1850mm |
| Material | inner box | SUS304 stainless steel plate |
| Outer box | Coating anti rust treatment and spray coating on the surface of
cold-rolled steel plate |
| Sealing strip | Imported silicone sealing strip |
| Insulation layer | Thick polyurethane foam and glass fiber |
| System | Heating adjustment. | Nickel chromium alloy electric wire heater |
| Humidification regulation | Stainless steel armored humidifier (heating humidification method) |
| refrigerator | French Taikang fully enclosed compressor |
| cryogen | Non fluorinated environmentally friendly refrigerant R404A/R23 |
| Cooling metho | Mechanical compression single-stage refrigeration (air-cooled or
water-cooled) | Mechanical compression two-stage refrigeration (air-cooled or
water-cooled) |
| Circulating fan | Centrifugal fan |
| Controller | display | TFT true color LED touch screen, Chinese/English menu, touch input
mode |
| Operation mode | Program control, fixed value control |
| Program editing | 120 sets of programs can be edited, with each set capable of
editing up to 100 segments with network functionality; IP address
can be set for remote control of instruments |
| Sensor input type | Two PT100 inputs (optional electronic sensor input) |
| Temperature measurement range and accuracy | - 90.0 ℃~200.0 ℃ (-90.0 ℃~300.0 ℃ can be customized) with an error
of ± 0.2 ℃ |
| Humidity measurement range and accuracy | 1% RH to 100% RH, with an error of ± 1% RH |
| Communication interface | USB/RS-232/RS-485 (software purchased separately) |
| Equipment usage environment |
| Temperature 0-30 ℃, humidity 0-85% RH (non condensing) |
| power |
| 7.5KW | 9.5KW | 12KW | 12KW |
| Power Supply | AC 380 (1 ± 10%) V (50 ± 0.5) Hz three-phase four wire+protective
earth wire |
| ♦Support customized needs |
Hot-Sell Products:
Company Information:
Dongguan Neide Technology Co. Ltd located in Dongguan, Guangdong
province with convenient transportation access. We take immense
pride in our journey of excellence as a premier provider of
top-quality testing equipment. With our unwavering commitment to
innovation, we specialize in crafting cutting-edge environmental
test chambers and mechanical test machines.
Our extensive range includes temperature and humidity chambers,
thermal shock test chambers, tensile testing machines, and
vibration test machines. What sets us apart is our proficiency in
creating customized testing equipment tailored to your specific
needs.
At the heart of our operations lies a dedication to precision and
compliance. Our products are engineered to meet and exceed
international standards, such as ISO, ASTM, DIN, EN, GB, BS, JIS,
AMSI, UL, TAPPI, AATCC, and IEC.
This ensures that our solutions not only adhere to industry
benchmarks but set new standards of excellence. Our services and
products find applications across diverse sectors, including
R&D institutions, quality inspection establishments,
universities, and electronics and communications industries.
FAQ:
1.What is the purpose of a Constant Temperature & Humidity Test
Chamber?
A Constant Temperature & Humidity Test Chamber is designed to
simulate specific environmental conditions, such as extreme
temperatures and humidity levels, to test the durability,
performance, and reliability of products, materials, or components.
It is widely used in industries like electronics, automotive,
aerospace, pharmaceuticals, and materials science for quality
control, research, and development.
2. What size options are available for the chamber?
Chambers come in various sizes, from compact benchtop models (e.g.,
50L) to large walk-in chambers (e.g., 1000L or more). The size you
choose depends on the dimensions of the samples or products you
need to test. Custom sizes may also be available upon request.
3. Can the chamber simulate rapid temperature and humidity changes?
Yes, many chambers are equipped with rapid temperature change (RTC) capabilities, allowing you to simulate sudden shifts in
environmental conditions. The rate of change (e.g., 5°C/min or
10°C/min) depends on the model and its cooling/heating system.
4. What is the lead time for delivery and installation?
Lead times vary depending on the manufacturer, model, and
customization requirements. Standard models may be available for
immediate delivery, while custom-built chambers could take several
weeks. Installation is typically handled by the supplier or a
certified technician.
